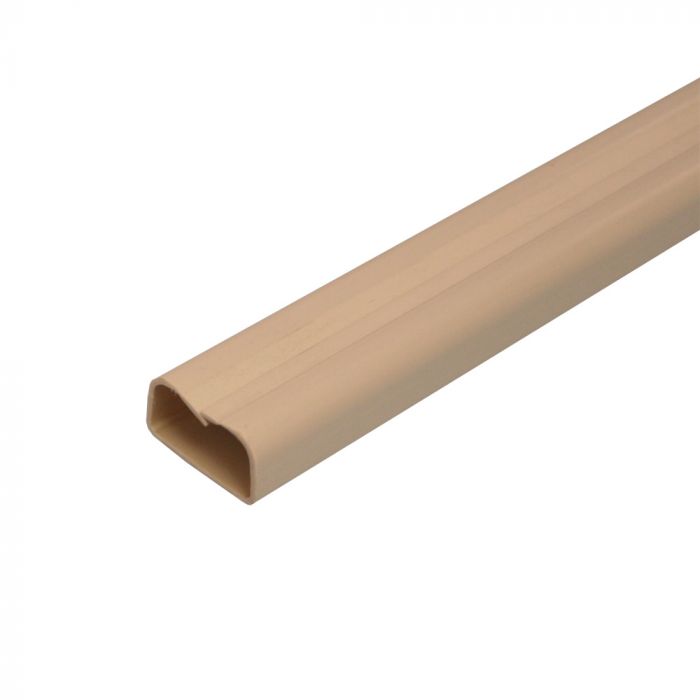

1″ X 48″ Premiere WireHider Raceway Beige FWH-12424 (28 Pieces)

$181.70

• Sold By Pieces:  28 Pcs.
• UL94VO Rated – flame retardant PVC
• Adhesive backing for easy installation
• UV stabilizer added to prevent fading
• Cover lids latex paintable to match decor
• Available in 3 sizes, and 2 lengths

SKU: FWH-12424 Categories: ,

Description

Won’t Let Go when you have to!

The Raceway System Designed to Give You an Extra HAND
Wire Hider Non-Metallic Surface Mount Raceway was designed with the Installation Professional in mind.

Have you ever laid cable into a raceway only to have it fall out as you attempt to close the cover, especially on ceiling runs?

Wire Hider was designed to eliminate this problem and speed up installation – which saves you TIME and MONEY!

 Premiere Materials and Dimensions
Channel:    Rigid PVC UL94V0
Flame Retardant rated material with Vinyl Flap
UV Stabilized
1/2 in Inside Dimensions:
 0.475 in. W x 0.475 in H
1 in Inside Dimensions:
 1.085 in W x 0.545 H
1.5 in Inside Dimensions:
 1.4 in W x 0.687 H
Cover Lid: Rigid PBC UL 94V-0 Flame Retardant rated material
UV Stabilized
Latex paintable
1/2 in Inside Dimensions:
 0.645 in w x 0.535 in H
1 in Inside Dimensions:
 1.225 in W x 0.605 in H
1.5 in Inside Dimensions:
 1.687 in W x 0.875 in H
Accessories: ABS Flame Retardant UL94V-o/5A Rated material UV Stabilized
Cover Lids – Inside/Outside Corners
Right Angles – Tees – Ceiling Drops
Reducers – End Caps & Surface Mount Boxes
Standard colors are: White – Beige – Brown – Clear
Custom colors available with minimum order
Standard lengths: 48″ , 72″, 84″
Packaged in convenient 6-pack and 4-pack cartons as well as Bulk pack cartons
 Raceway Wire Capacity
Recommended Number of Wires or Cable
Electical Applications CA. TV Applications Telephone Applications
SIZE #18 AWF
OD .113		 #14 AWF
OD .139		 #12 AWG
OD .158		 RG 9/U
OD .242		 RG 6/U
OD .160		 4 Pair
OD .160 		25 Pair
OD .340
FS .5 X .5 10 6 6 2 – 3 –
FS 1.08 x .55 – – – 7 5 10 3
FS 1.54 X .77 – – – 12 10 22 7

More Information

  • Size 1″
  • Length 4 Ft
  • Pcs 28
  • Part FWH-12424
  • UPC # 85924100007
